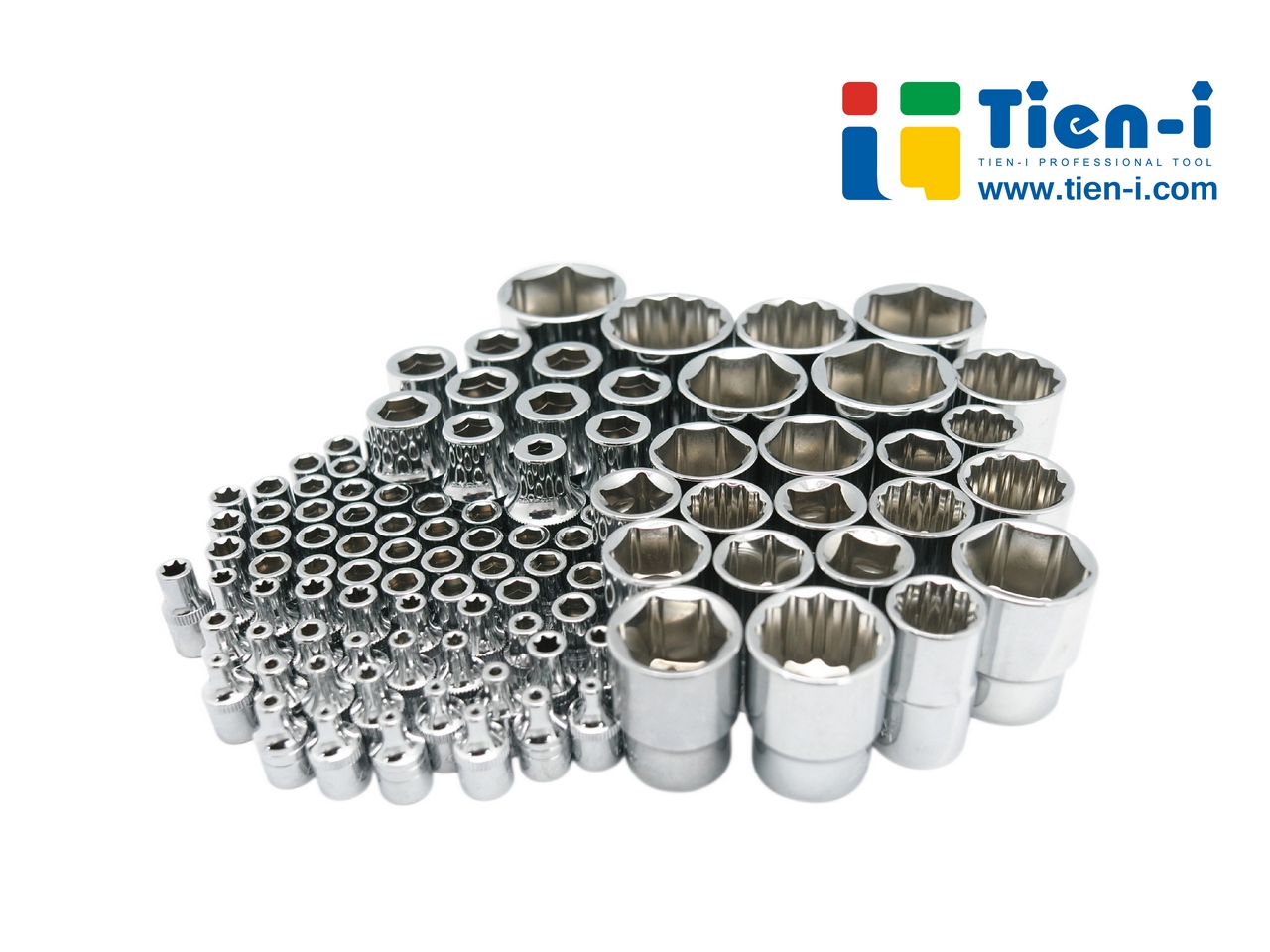

1/4" Drive Socket, ANSI, 6-Point & 12-Point, Sallow & Deep, SAE & Metric Vaso de cuadradillo de 1/4", ANSI, de 6 y 12 puntas, corto y largo, SAE y métrico

Acero al cromo-vanadio (CR-V) fabricado en Taiwán y templado con el proceso de tratamiento térmico patentado de Tien-i para soportar más par de apriete.
El acabado niquelado y cromado pulido ofrece durabilidad y resistencia a la corrosión.
Diseño geométrico del vaso para sujetar los lados planos de la cabeza del sujetador, no las esquinas, evitando así el redondeo.
Tamaños completos para SAE y métrico
Cumple o supera las normas de rendimiento ANSI, DIN e ISO.

* Vaso de 6 puntas y de 12 puntas con diferentes números de artículo.

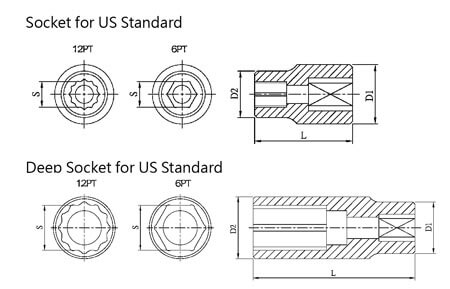

Tabla de tallas

Descargar tabla de dimensiones completas

Item No.	12P Item No.	S	L (mm)	D1 (mm)	D2 (mm)	(g)
EDCR26204	EDCR27204	4	25	12	6.5	10
EDCR262045	EDCR272045	4.5	25	12	7.2	10
EDCR26205	EDCR27205	5	25	12	8.0	10
EDCR262055	EDCR272055	5.5	25	12	8.5	11
EDCR26206	EDCR27206	6	25	12	9.0	11
EDCR26207	EDCR27207	7	25	12	10.5	11
EDCR26208	EDCR27208	8	25	12	12.0	12
EDCR26209	EDCR27209	9	25	13	13.0	14
EDCR26210	EDCR27210	10	25	14	14.0	17
EDCR26211	EDCR27211	11	25	15	15.0	23
EDCR26212	EDCR27212	12	25	16	16.0	26
EDCR26213	EDCR27213	13	25	17	17.0	28
EDCR26214	EDCR27214	14	25	19	19.0	36

Item No.	12P Item No.	S	L (mm)	D1 (mm)	D2 (mm)	(g)
EDCR26104	EDCR27104	1/8"	25	12.0	5.5	8
EDCR26105	EDCR27105	5/32"	25	12.0	6.5	10
EDCR26106	EDCR27106	3/16"	25	12.0	7.5	10
EDCR26107	EDCR27107	7/32"	25	12.0	8.5	10
EDCR26108	EDCR27108	1/4"	25	12.0	9.5	10
EDCR26109	EDCR27109	9/32"	25	12.0	10.5	11
EDCR26110	EDCR27110	5/16"	25	12.0	12.0	12
EDCR26111	EDCR27111	11/32"	25	13.0	13.0	15
EDCR26112	EDCR27112	3/8"	25	14.5	14.5	16
EDCR26114	EDCR27114	7/16"	25	16.0	16.0	22
EDCR26115	EDCR27115	15/32"	25	17.0	17.0	25
EDCR26116	EDCR27116	1/2"	25	18.0	18.0	32
EDCR26118	EDCR27118	9/16"	25	20.0	20.0	35

Item No.	12P Item No.	S	L (mm)	D1 (mm)	D2 (mm)	(g)
EDLCR26204	EDLCR27204	4	50	12.0	6.8	16
EDLCR262045	EDLCR272045	4.5	50	12.0	7.4	20
EDLCR26205	EDLCR27205	5	50	12.0	8.0	19
EDLCR262055	EDLCR272055	5.5	50	12.0	8.5	19
EDLCR26206	EDLCR27206	6	50	12.0	9.0	20
EDLCR26207	EDLCR27207	7	50	12.0	10.5	22
EDLCR26208	EDLCR27208	8	50	12.0	12.0	25
EDLCR26209	EDLCR27209	9	50	13.2	13.2	30
EDLCR26210	EDLCR27210	10	50	14.9	14.7	37
EDLCR26211	EDLCR27211	11	50	16.0	16.0	43
EDLCR26212	EDLCR27212	12	50	17.0	17.0	48
EDLCR26213	EDLCR27213	13	50	18.0	18.0	52
EDLCR26214	EDLCR27214	14	50	19.0	19.0	68

Item No.	12P Item No.	S	L (mm)	D1 (mm)	D2 (mm)	(g)
EDLCR26105	EDLCR27105	5/32"	50	12.0	6.5	20
EDLCR26106	EDLCR27106	3/16"	50	12.0	8.5	19
EDLCR26107	EDLCR27107	7/32"	50	12.0	8.5	19
EDLCR26108	EDLCR27108	1/4"	50	12.0	9.5	19
EDLCR26109	EDLCR27109	9/32"	50	12.0	10.5	23
EDLCR26110	EDLCR27110	5/16"	50	12.0	12.0	23
EDLCR26111	EDLCR27111	11/32"	50	13.0	13.0	31
EDLCR26112	EDLCR27112	3/8"	50	14.5	14.5	39
EDLCR26114	EDLCR27114	7/16"	50	16.0	16.0	42
EDLCR26115	EDLCR27115	15/32"	50	17.0	17.0	50
EDLCR26116	EDLCR27116	1/2"	50	18.0	18.0	53
EDLCR26118	EDLCR27118	9/16"	50	19.0	19.0	50
