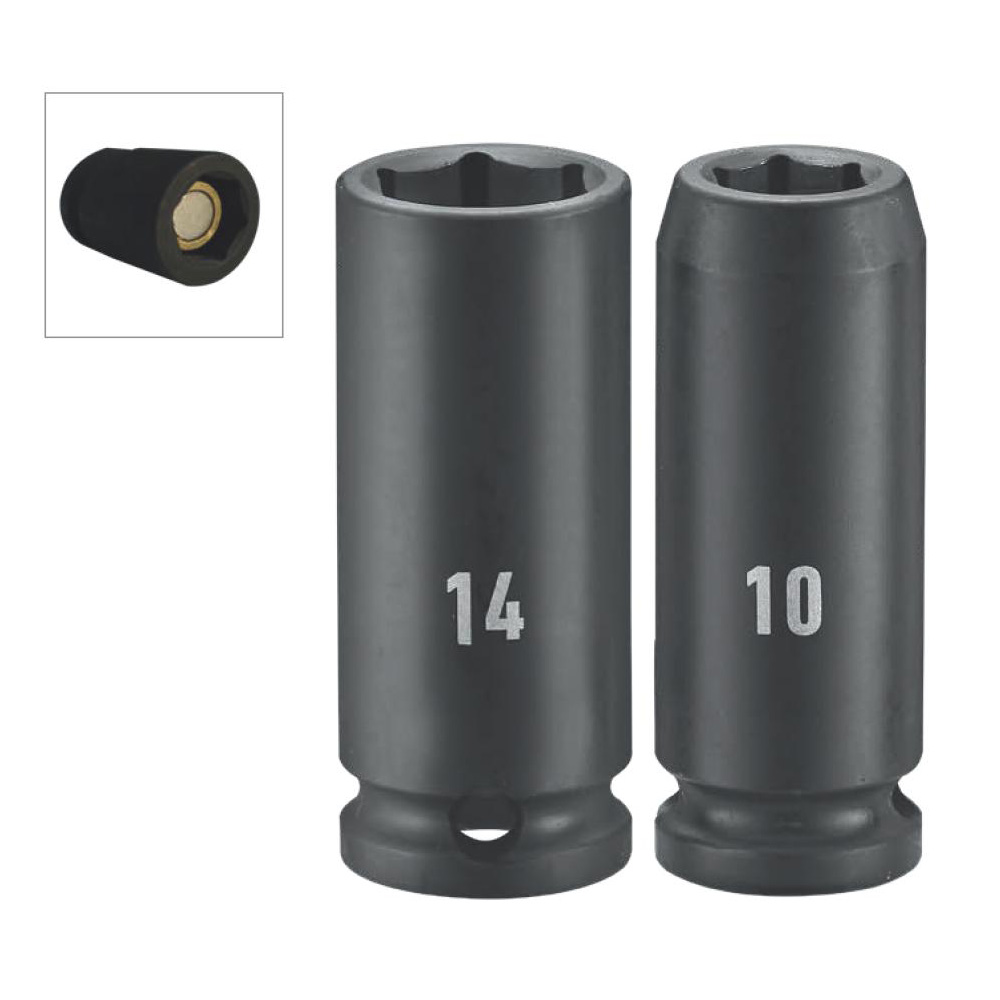

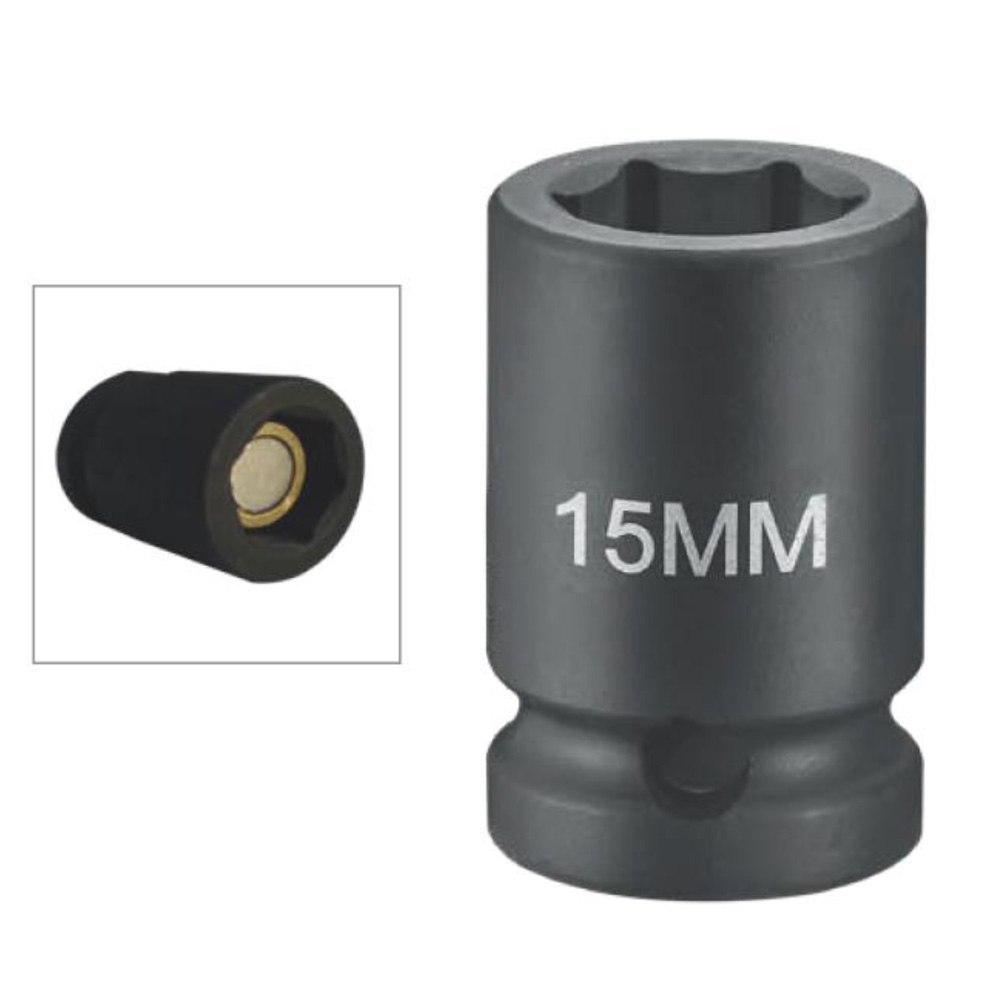

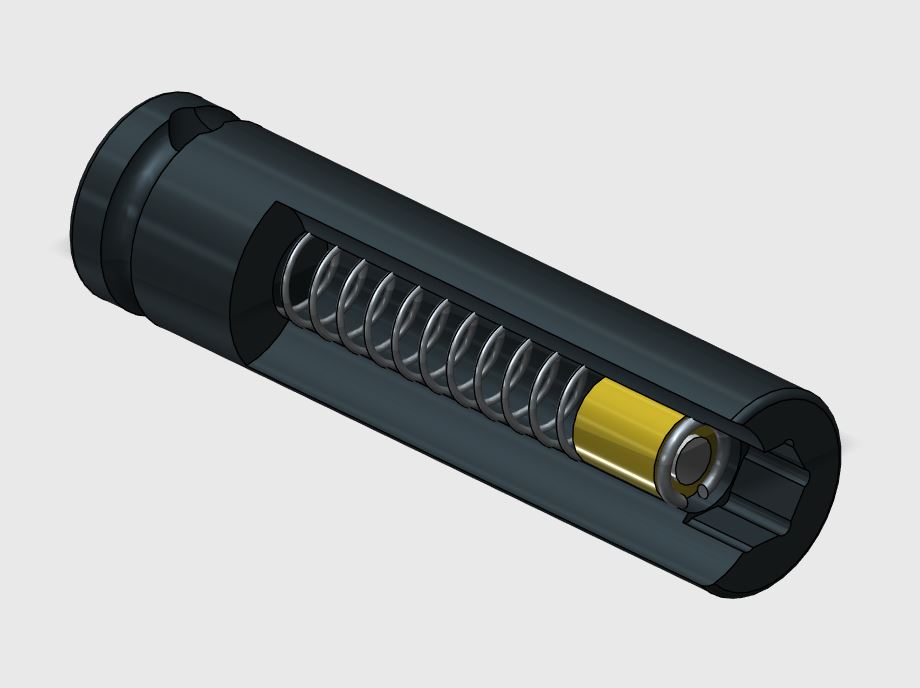

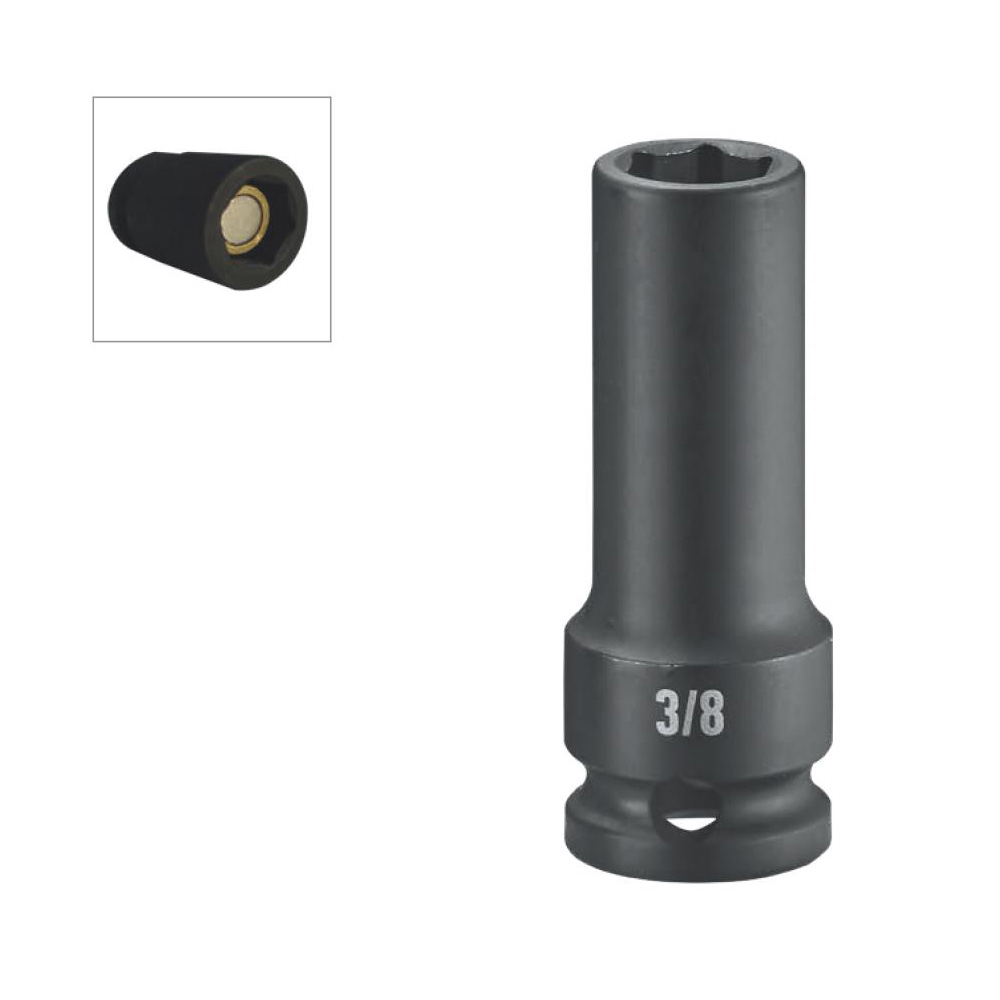

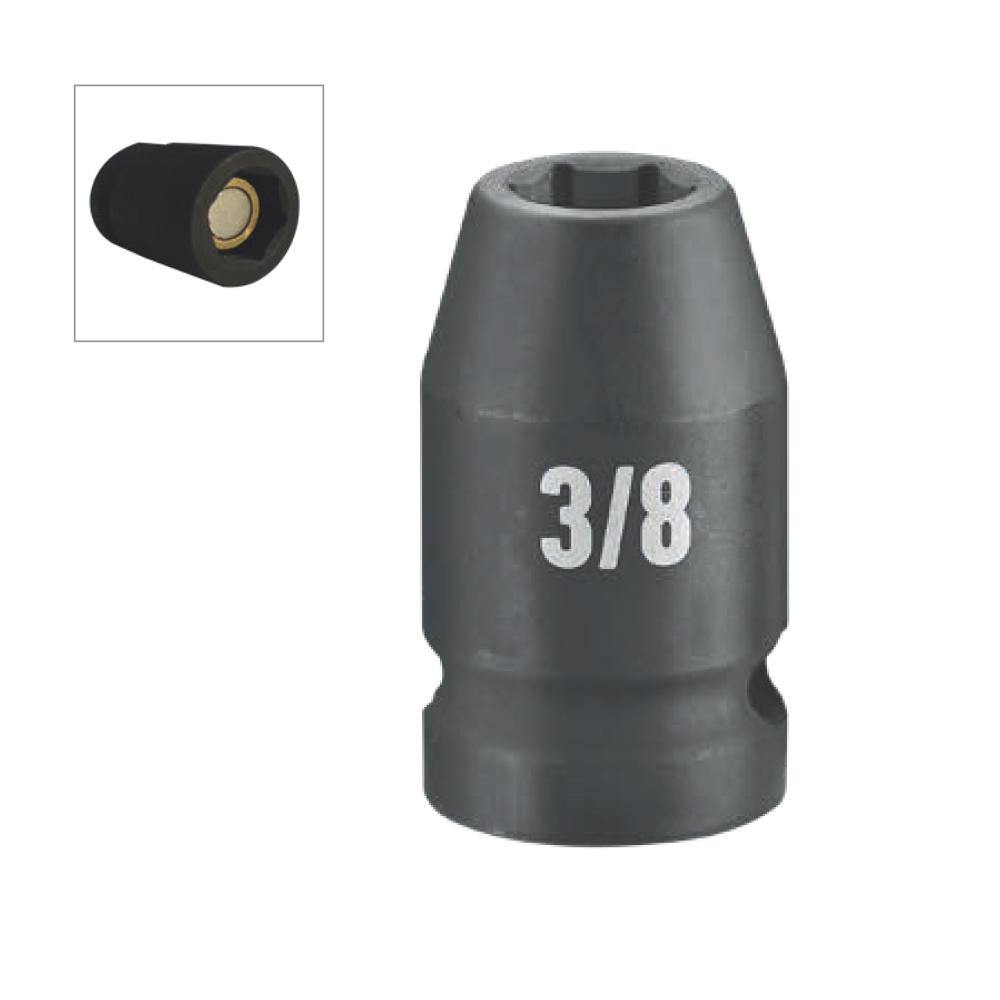

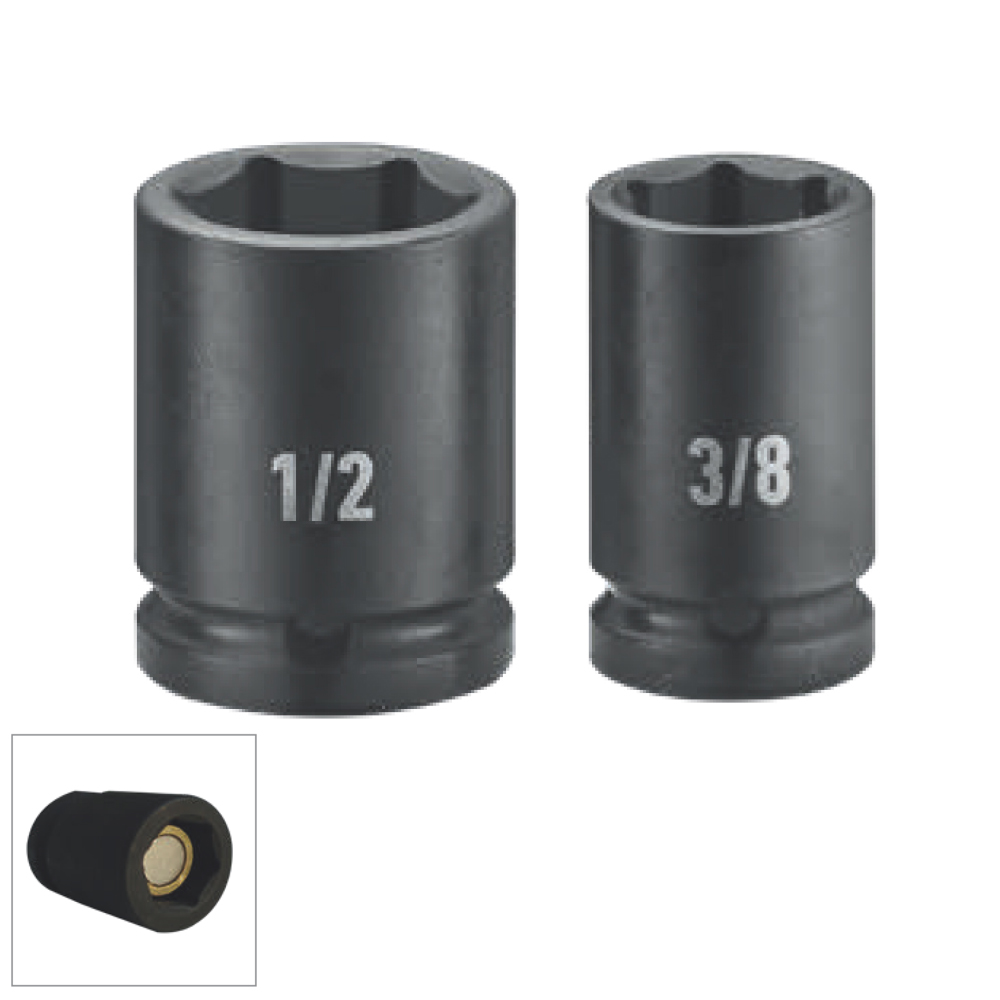

Magnetic Impact Socket Vaso de impacto magnético

Tien-i de impacto vaso Made in Taiwan, from forged and heat treated CHROME MOLYBDENUM STEEL (CR-MO) with a corrosion-resistant black phosphate finish (ACABADO EN FOSFATO DE MANGANESO)
Tien-i de impacto vaso with High-torque, 6-point socket design grips the flat sides of fasteners, not just the corners, preventing round-off
Complete Sizes for SAE and Metric system
High-contrast permanent laser etched size markings are easy-to-read, even in low light
Tien-i de impacto vaso meets or exceeds ANSI & DIN & ISO performance standards
To know more: Differences between DIN and ANSI Specifications for de impacto vasos

Tabla de tallas

Descargar tabla de dimensiones completas

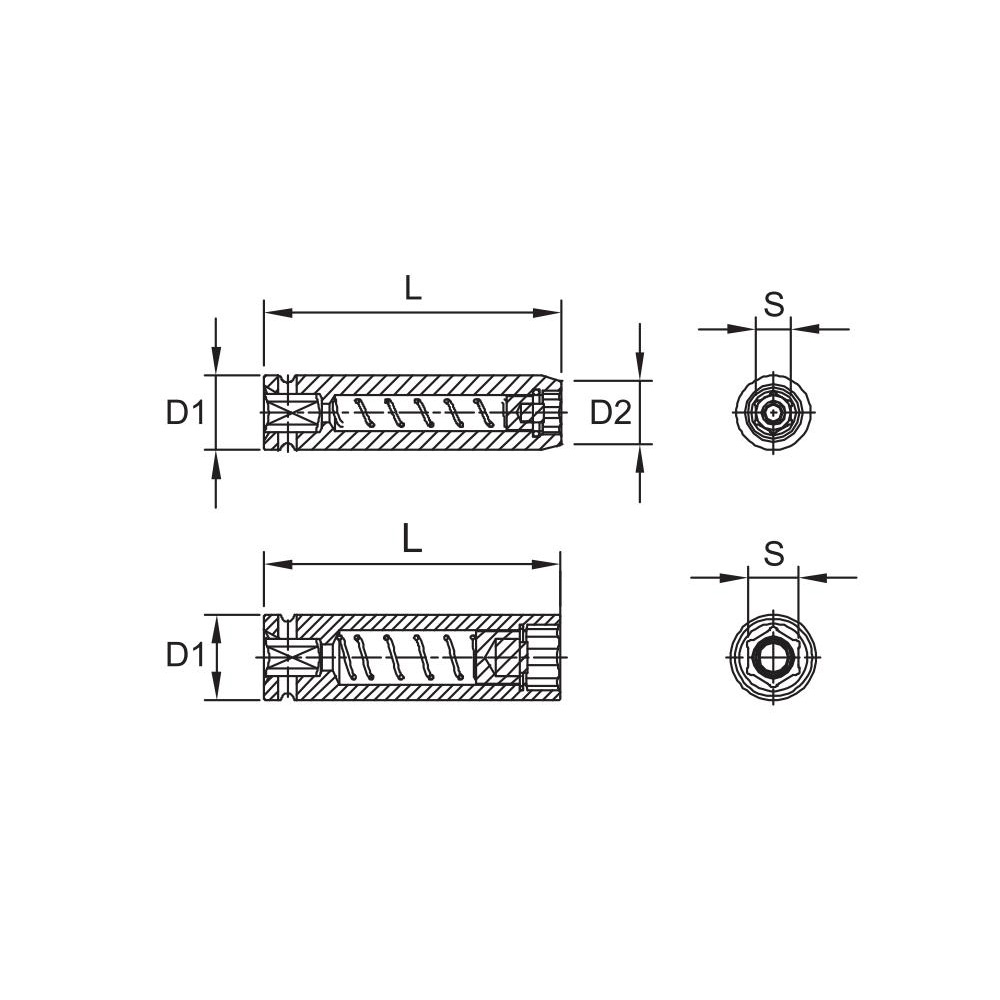

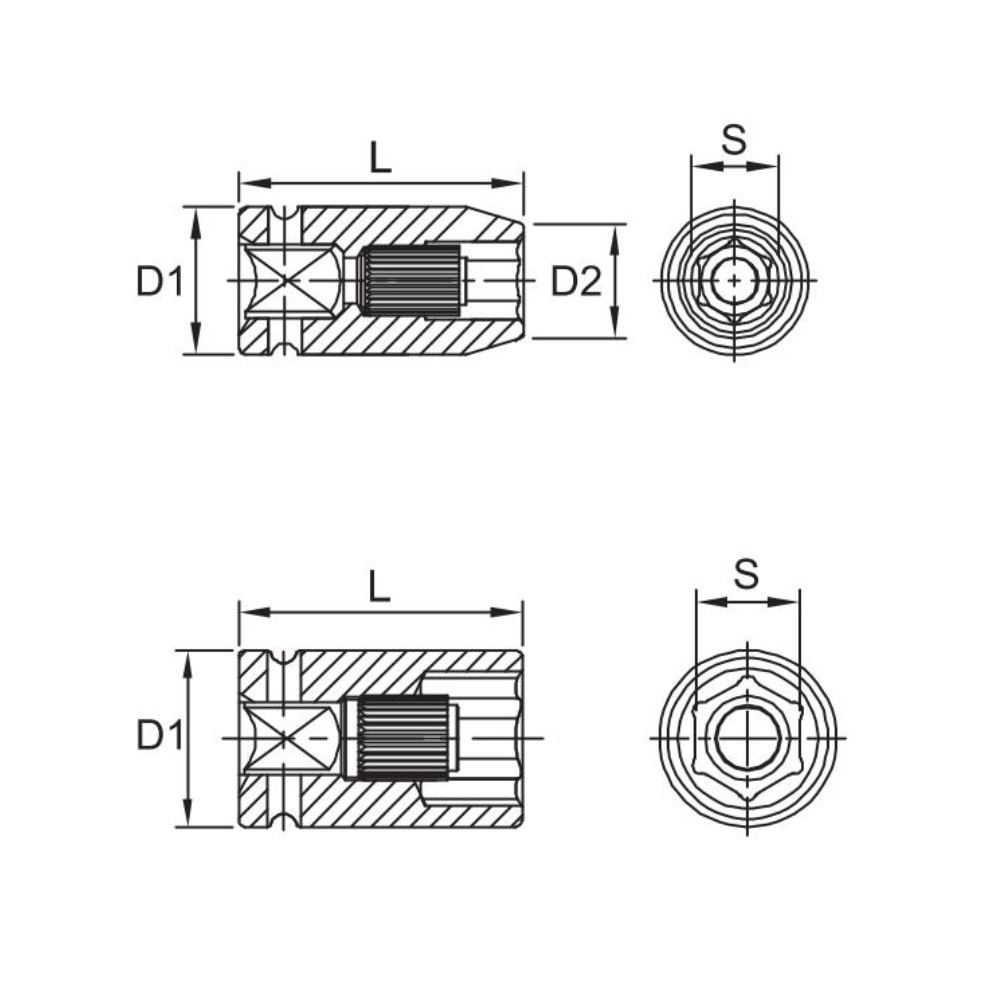

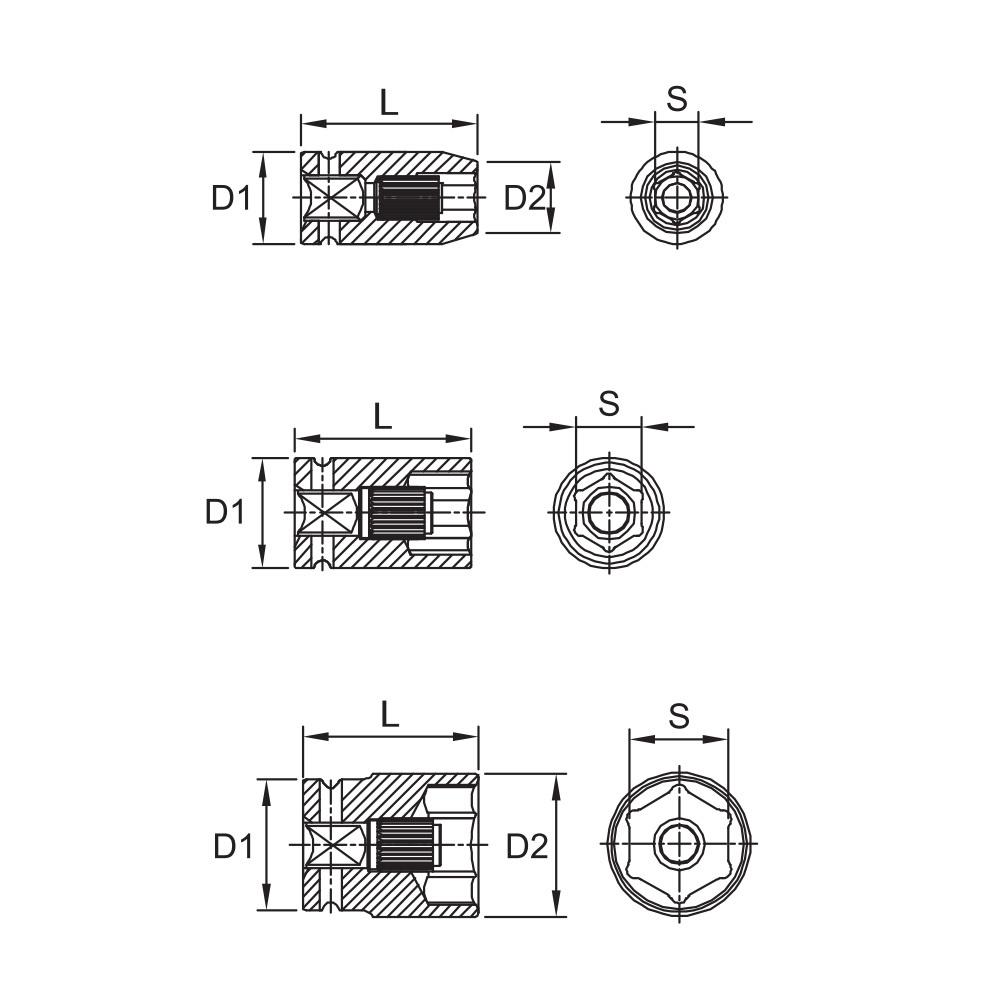

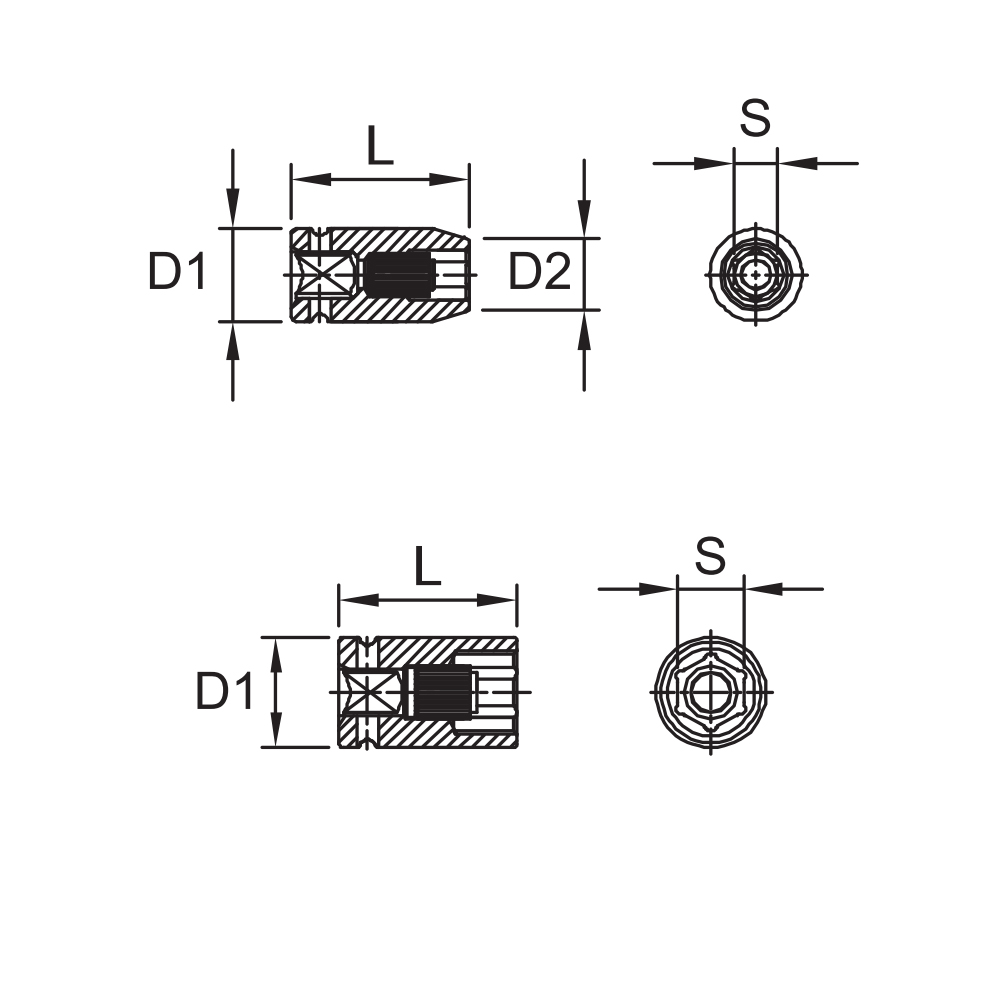

Item No.	S	L(mm)	D1(mm)	D2(mm)
CIDM26105	5/32”	23	13	7.4
CIDM26106	3/16”	23	13	7.8
CIDM26107	7/32”	23	13	8.8
CIDM26108	1/4”	23	13	10.4
CIDM26109	9/32”	23	13	11.4
CIDM26110	5/16”	23	13	12.4
CIDM26111	11/32”	24.5	13.9	13.9
CIDM26112	3/8”	24.5	14.4	14.4
CIDM26114	7/16”	24.5	16.9	16.9
CIDM26116	1/2”	24.5	18.9	18.9
CIDM26118	9/16”	24.5	19.9	19.9

Item No.	S	L(mm)	D1(mm)	D2(mm)
CIDM26205	5	23	13	9.1
CIDM2620505	5.5	23	13	9.7
CIDM26206	6	23	13	10.3
CIDM26207	7	23	13	11.3
CIDM26208	8	23	13	12.5
CIDM26209	9	24.5	13.9	13.9
CIDM26210	10	24.5	14.4	14.4
CIDM26211	11	24.5	16.9	16.9
CIDM26212	12	24.5	17.9	17.9
CIDM26213	13	24.5	18.9	18.9
CIDM26214	14	24.5	19.9	19.9

Item No.	S	L(mm)	D1(mm)	D2(mm)
CIDM36108	1/4"	29.5	19	10.4
CIDM36110	5/16"	29.5	19	12.7
CIDM36112	3/8"	29.5	19	15
CIDM36114	7/16"	29.5	19	17.4
CIDM36116	1/2"	29.5	20	20
CIDM36118	9/16"	29.5	22	22
CIDM36120	5/8"	30	22	22
CIDM36122	11/16"	30	23.8	23.8

Item No.	S	L(mm)	D1(mm)	D2(mm)
CIDM36206	6	29.5	19	11.6
CIDM36207	7	29.5	19	12.8
CIDM36208	8	29.5	19	14.1
CIDM36209	9	29.5	19	15.3
CIDM36210	10	29.5	19	16.6
CIDM36211	11	29.5	19	17.8
CIDM36212	12	29.5	19	19
CIDM36213	13	29.5	20	20
CIDM36214	14	29.5	22	22
CIDM36215	15	29.5	22	22
CIDM36216	16	30	23.6	23.6
CIDM36217	17	30	23.8	23.8

Item No.	S	L(mm)	D1(mm)	D2(mm)
CIDM46110	5/16"	38	22	14.5
CIDM46112	3/8"	38	22	16
CIDM46114	7/16"	38	22	18
CIDM46116	1/2"	38	22	20
CIDM46118	9/16"	38	24	22
CIDM46120	5/8"	38	25	25
CIDM46122	11/16"	38	26	26
CIDM46124	3/4"	38	28	28
CIDM46126	13/16"	38	30	30

Item No.	S	L(mm)	D1(mm)	D2(mm)
CIDM46208	8	38	22	14.5
CIDM46209	9	38	22	16
CIDM46210	10	38	22	16.7
CIDM46211	11	38	22	18
CIDM46212	12	38	22	19
CIDM46213	13	38	24	20.2
CIDM46214	14	38	24	21.5
CIDM46215	15	38	25	25
CIDM46216	16	38	25	25
CIDM46217	17	38	26	26
CIDM46218	18	38	27	27
CIDM46219	19	38	28	28
CIDM46221	21	38	30	30

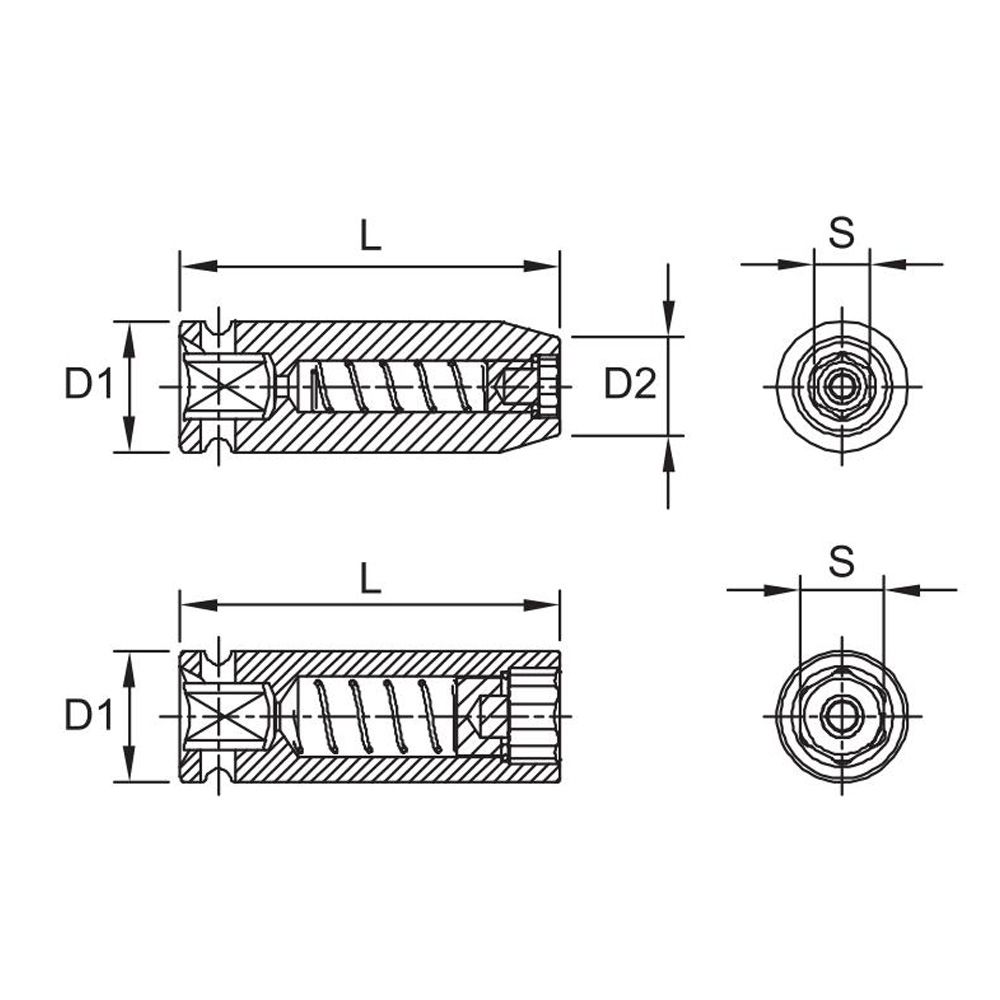

Item No.	S	L(mm)	D1(mm)	D2(mm)
IMMGA26206	6	50	13	10.3
IMMGA26207	7	50	13	11.6
IMMGA26208	8	50	13	12.5
IMMGA26209	9	50	13	13
IMMGA26210	10	50	14.7	14.7
IMMGA26211	11	50	15.9	15.9
IMMGA26212	12	50	16.9	16.9
IMMGA26213	13	50	18.9	18.9
IMMGA26214	14	50	19.9	19.9
IMMGA26215	15	50	20.9	20.9

Item No.	S	L(mm)	D1(mm)	D2(mm)
IMMGA36206	6	50	18.8	11.6
IMMGA36207	7	50	18.8	12.8
IMMGA36208	8	50	18.8	14.1
IMMGA36209	9	50	18.8	15.3
IMMGA36210	10	50	18.8	16.6
IMMGA36211	11	50	18.8	17.8
IMMGA36212	12	50	18.8	18.8
IMMGA36213	13	50	19.8	19.8
IMMGA36214	14	50	20.8	20.8
IMMGA36215	15	50	21.8	21.8
